| No. | Item | Specification |
| General Specification | ||

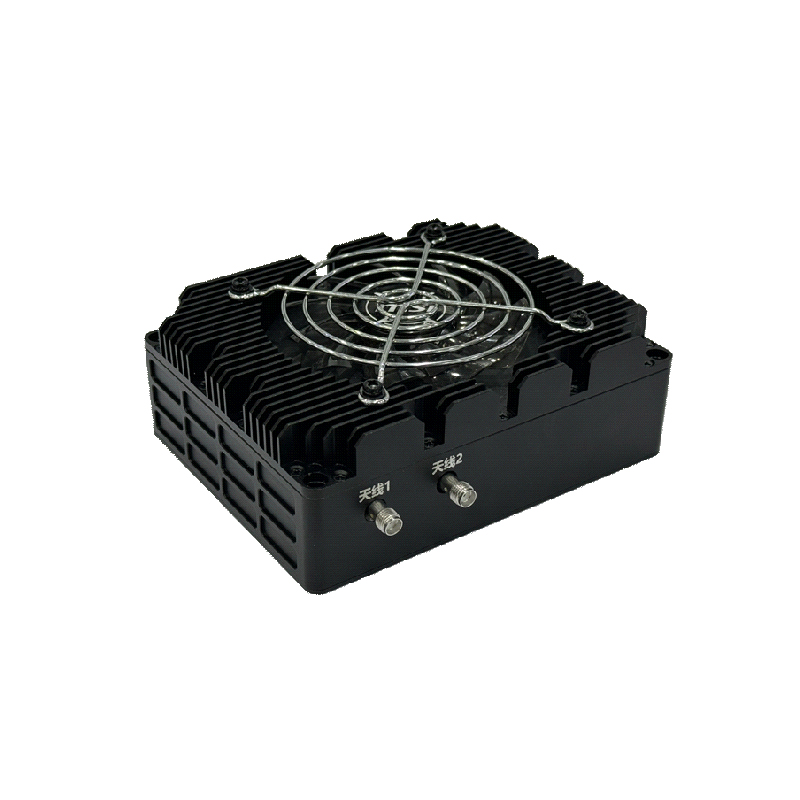

| 1 | Product Size | 128 ´ 100 ´ 50mm (excluding connectors) |
| 2 | Product Weight | 620g±20g |
| 3 | Working Temp | -20 ~ 65℃ |
| 4 | Storage Temp | -40 ~ 80℃ |
| 5 | Voltage | DC 18~28V |
| 6 | Power | ≯80W (average)；≯150W (peak) |
| 7 | Physical Interface | SMA-K ´ 2、J30J-37ZKP |
| 8 | Data Interface | 2*100Mbps network、2*TTL（3.3V） |
| 9 | Device Shell | Aluminum alloy |
| Performance Specification | ||
| 10 | Modulate Mode | QPSK、16QAM、64QAM |
| 11 | FEC | Turbo |
| 12 | Encryption | DES、AES128、AES256 |
| 13 | Work Frequency | 1300~1500MHz |
| 14 | RF Power | 5W（37dBm±1dBm） |
| 15 | RF Channel | 1T2R |
| 16 | RF Bandwidth | 20MHz、10MHz、5MHz |
| 17 | Anti-interference | Adaptive Frequency Hopping (AFH): fast frequency hopping (≮1000 hops/second), automatically monitors interference at working frequencies, and automatically avoids frequencies with large interference during the frequency hopping process |
| 18 | Net Capacity | 3 nodes (default); 32 nodes (maximum)
NOTE：Different prices for different number of nodes |
| 19 | Net Topology | Mobile Ad Hoc Network, Support star, linear, mesh and hybrid networking, etc. Multi-hop routing, up to 31-hop |
| 20 | Doppler Shift | Support to 1000km/h relative velocity |
| 21 | Transmit Delay | 2-node 1-hop delay: ≯20ms; 4-node 3-hop delay: ≯60ms
8-node 7-hops delay: ≯150ms; 32-node 31-hop delay: ≯3000ms |
| 22 | Boot Time | Master node network construction time：~20s
Access node network access time（cold start）：~10s Access node network access time（hot start）：~1s |
| 23 | Link Building Rate | 100% |
| 24 | Data Rate | The system share 40Mbps data rate |
| 25 | Distance | ≮60km（line-of-sight and no interference） |
